FiberLite XL Tradesman
FiberLite XL Tradesman
The Standard By Which All Fiber Splicing Trailers are Measured

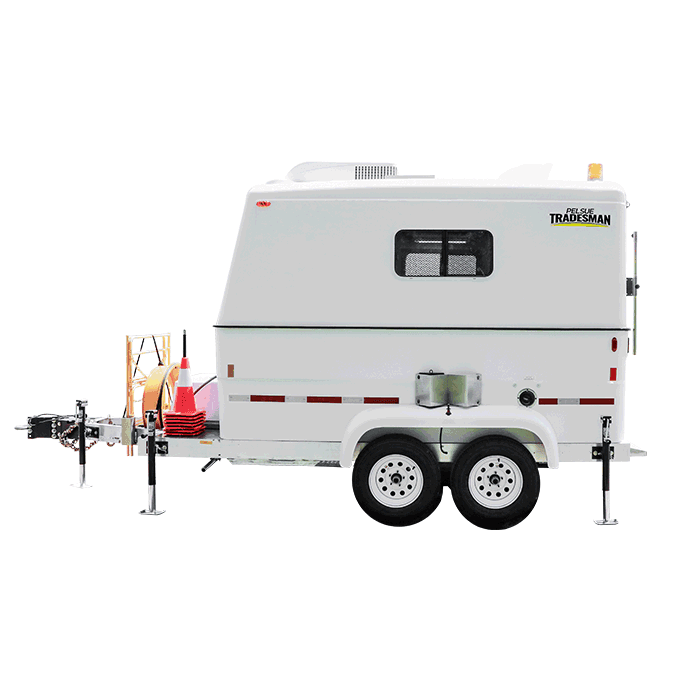

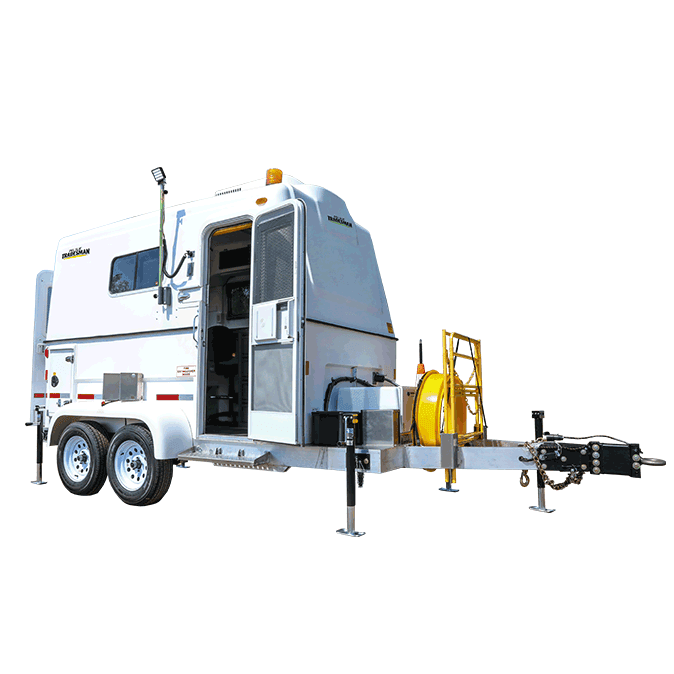

The FiberLite® XL Tradesman™ is Pelsue’s flagship fiber optic splicing trailer trusted by leading communication companies to meet the demand for safety and durability while also providing reliable, long-lasting value and security in the field. Pelsue’s quality standard begins with aluminum frame construction, premium craftsmanship and the unmatched longevity of a fiberglass body.

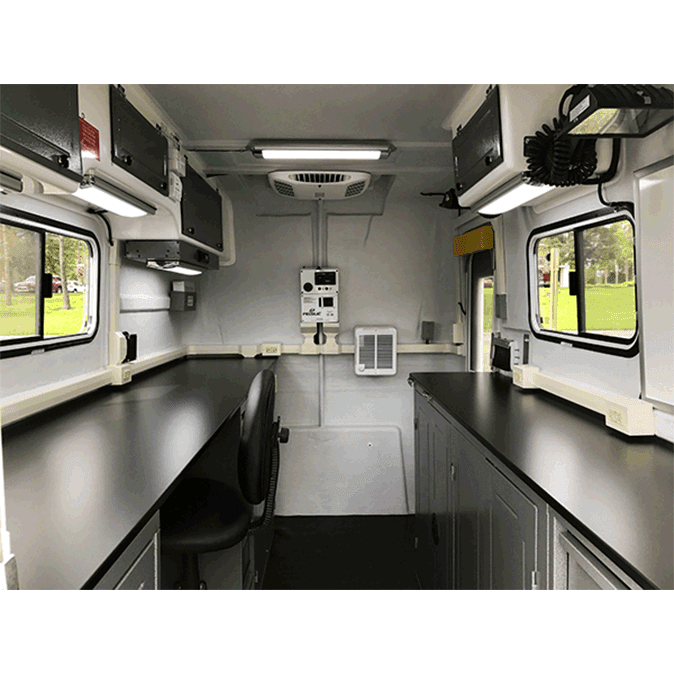

The spacious interior of the FiberLite® XL Tradesman™ means plenty of cabinet storage, counter space and lighting. Neat and smooth finishes make cleaning and maintenance easy, and heating and cooling options create a comfortable working environment no matter what the weather throws at you.
Efficient Layout and Plenty of Storage:
One of the most spacious fiber splicing trailers on the market, the Pelsue FiberLite® XL Tradesman™ has space for everything you need to deliver high-quality work efficiently and with safety at the forefront. Features like the full-length counter top, high-capacity cabinet storage, two cable slots by each door, premium LED overhead lighting and an additional rear door mean every job can be done effectively.
Easy Cleaning and Maintenance:
Regardless of the weather or environment, the ability to keep the FiberLite® XL Tradesman™ clean and maintained becomes an afterthought due to smooth finishes that are easy to wipe down, an easily type: entry-hyperlink id: 4kxjk45WcT13PHwKr3JKKG, and more.
Comfortable Working Environment:
Safety is paramount, but comfort is key. Low-profile heating and cooling options, ventilation fan, fiberglass shell that insulates better than aluminum counterparts, and slider side windows are combined with rubber flooring and space for a variety of seating/chair options to make time in the XL Tradesman™ fly by for your team.
Standard Features Include:
Trailer & Chassis
All-aluminum frame construction with replaceable tongue
Tandem 2500 LB. torsion axles with electric brakes and DOT breakaway system, with ST205/75-15 tires
2” ball coupler hitch
7 pole RV spade type trailer plug
Pivoting sand pad foot
Stabilizer jacks - two rear corner jack
Fiberglass white gel coat body, insulated, with ribbed rubber floor mat
Fiberglass white gel coat fenders
Tandem 2500 LB. torsion axles with electric brakes and DOT
Nominal interior dimensions: 11’ L x 6’ W x 7’ H
(4) over head storage cabinets with latching doors

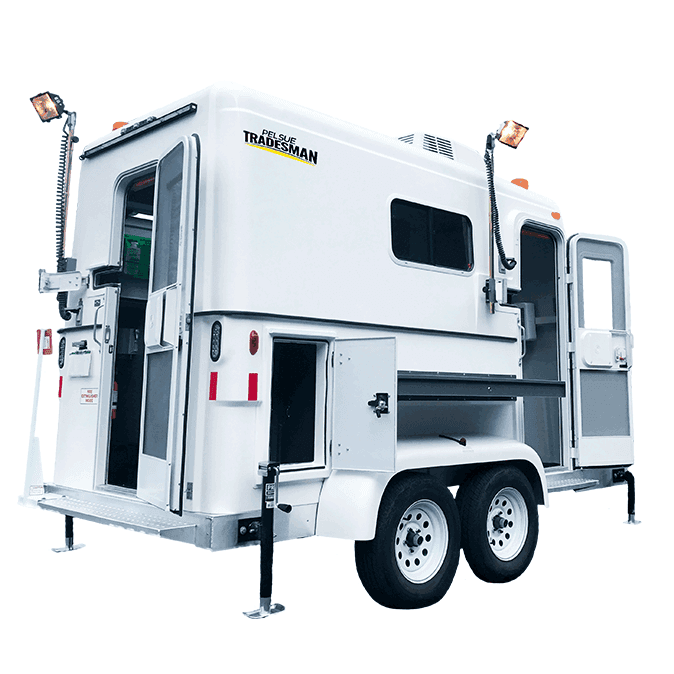

(2) personnel entry doors, one at rear and one on curbside of trailer
(2) 3” x 8” cable slots, pme each adjacent to each entry doors
Slider windows with screens on both sides
Entry step/bumper at rear and curbside entry door
Streetside cabinets and countertop- (3) single-door cabinets, (1) four-drawer module and a 42” high full-length countertop
Curbside Cabinets and countertop - (1) two-door cabinet, (1) single-door cabinet, (1) dry erase board and a 42” high countertop from curbside door to rearwall, (1) exterior access cabinet/wet cabinet with interior storage drawer above
Task chair - adjustable height stool
CO (Carbon Monoxide) detector, 12 VDC, hardwired, audible alarm
Fire extinguisher, 2 lb., 5-B-C rating
Cable clamp - steel, vacuum (suction cup) mount, 16” wide, shipped loose, Model 9S27
Electrical, Lighting & Climate
LED marker / clearance lights per DOT standards
LED stop / turn / tail lights per DOT standards
Control panel with individual circuit breakers
Commercial power inlet (120/240 VAC, 30-amp) twist lock: connects trailer to generator or commercial power, mounted on exterior front wall with cover
Onan CMM EFI 5500 genset, 5.5 KW,120 VAC/240 VAC, gasoline, includes 30-gallon CARB/EPAcompliant under-trailer fuel cell, remote-start mounted inside the trailer, includes 10 watt solar battery maintainer.
60 amp power converter
Air Conditioner,low profile, roof mounted
12 VDC LED lighting mounted under overhead cabinets
12 VDC LED lighting mounted on the ceiling
(5) GFCI duplex 120 VAC, 20-amp receptacles. Outlets are located on interior streetside wall and curbside walls with one receptacle that will also provide (2) USB ports located on front wall streetside
Exterior GFCI, 120 VAC duplex receptacle, 20-amp, located at rear exterior wall
12VDC LED scene light, mounted on rear streetside door, switch controlled
12VDC LED scene light, mounted on curbside, switch controlled
The Fiberglass Advantage
All Pelsue fiber splicing trailers come standard with a fiberglass gel coat body. Fiberglass offers several advantages like a sleek design, as well as reliability, durability and overall lifetime value. If your trailer incurs any damage to the high-quality FiberLite® body, it can be repaired type: entry-hyperlink id: qJcgcIdZtHdXTDb8KGpOp than if it had an aluminum build in addition to the lightweight fiberglass body offering lifetime efficiency through reduced fuel costs, heating/cooling efficiencies and more. type: entry-hyperlink id: qJcgcIdZtHdXTDb8KGpOp to read more about the advantages of fiberglass over aluminum.
Bringing You the Best the Industry Has to Offer
Pelsue has been dedicated to enabling a safe and productive work environment for more than 50 years. When you purchase your FiberLite® fiber splicing trailer from Pelsue, you benefit from our decades-long commitment to making the best fiber splicing trailers available and backed by our dedicated parts and support staff. type: entry-hyperlink id: 1ozl9htdowXt1JGanvQ6aK about us.
