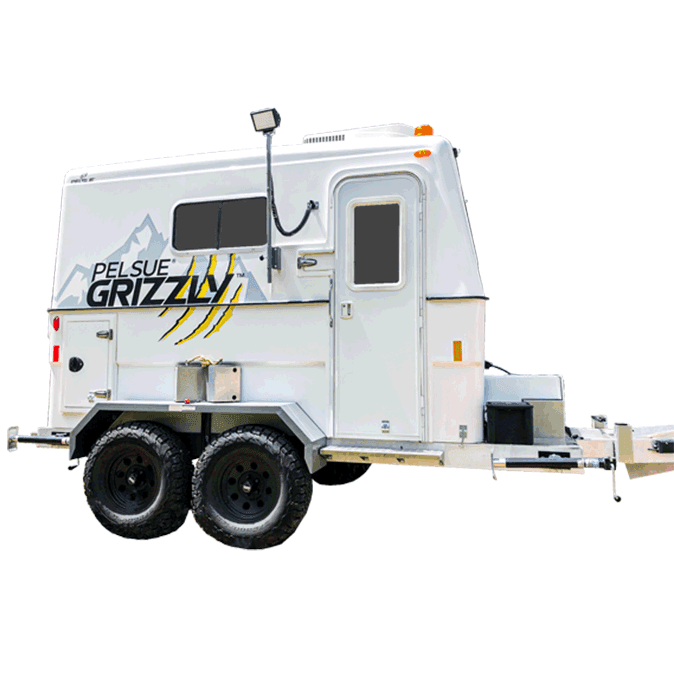

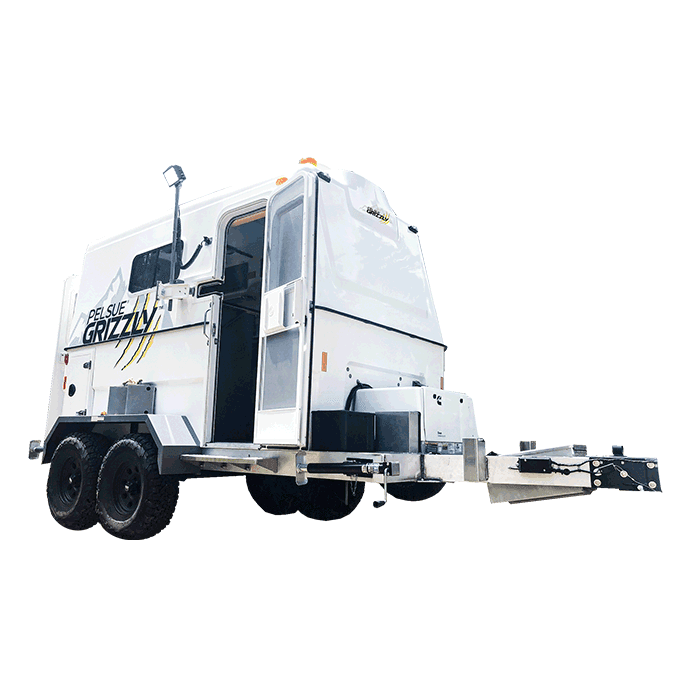

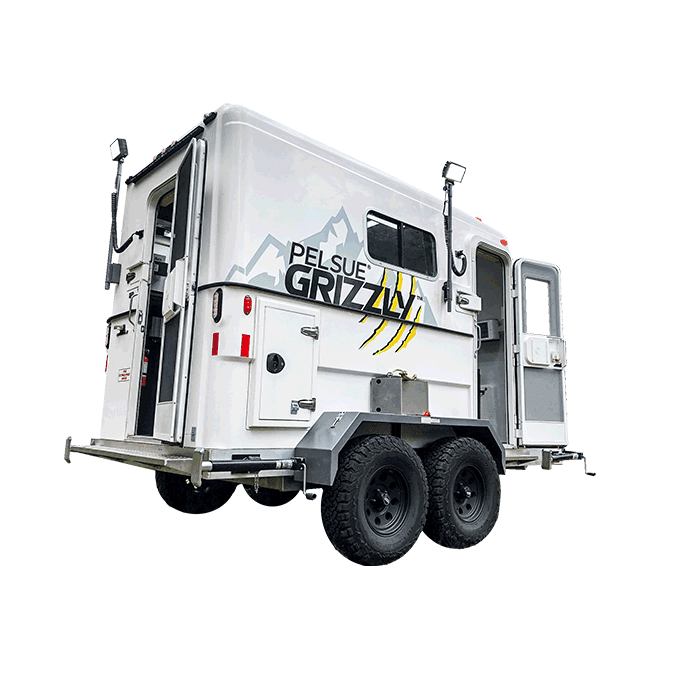

FiberLite XL Grizzly
FiberLite XL Grizzly
Top-of-the-Line Quality Meets Off-Road Durability
Building on the legacy of the FiberLite® XL Tradesman™ fiber splicing trailer, the FiberLite® Grizzly™ is ready to go wherever your jobs take you. Recognizing that the fiber splicing environments can vary significantly, the Grizzly™ is designed with the same best-in-class features as the Tradesman and built for additional durability.

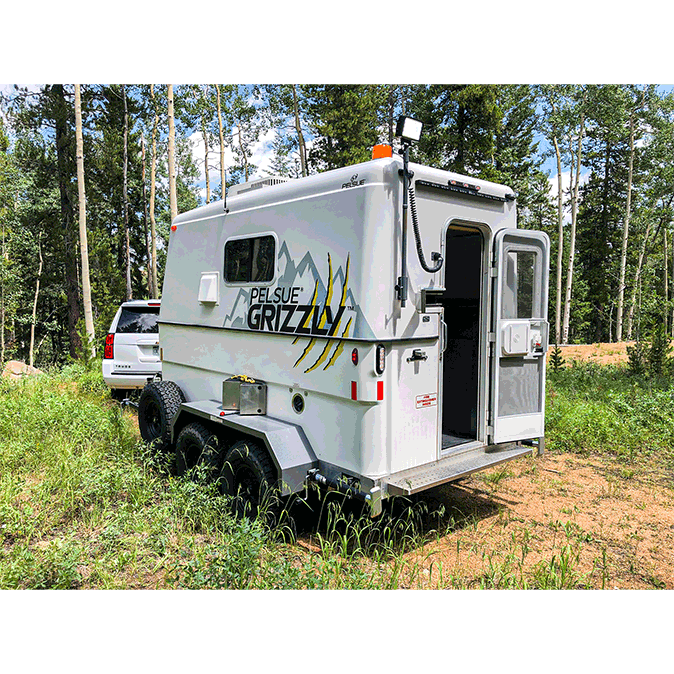

The Grizzly™ features off-road tires and wheels, higher clearance, heavy-duty fenders and an aluminum skid plate to protect the fuel cell when driving over rough terrain.
As the off-road variation of the Pelsue FiberLite® XL Tradesman, the XL Grizzly was designed for durability including an aluminum skid plate to protect the fuel cell when driving over rough terrain. The Grizzly brings off-road tires, high clearance and heavy-duty fenders to get you across rugged and unpredictable terrain safely.
The Coolest Trailer on the Block
With the FiberLite® XL Grizzly you’ll never have to trade functionality for aesthetics. The fiber splicing trailer’s unique design has the high-quality lightweight fiberglass body you’ve come to expect from Pelsue, with premium craftsmanship and finishes to create a light-filled, comfortable and exciting work environment.

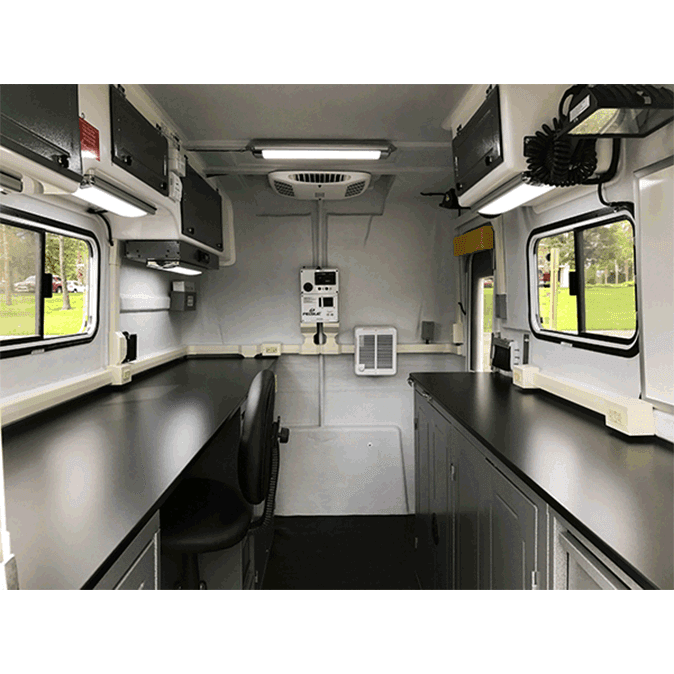

Efficient Layout and Plenty of Storage
One of the most spacious fiber splicing trailers on the market, the Pelsue FiberLite® XL Grizzly has space for everything you need to deliver high-quality work efficiently and with safety at the forefront. Features like the full-length counter top, high-capacity cabinet storage, two cable slots by each door, premium LED overhead lighting and an additional rear door mean every job can be done effectively.
Standard Features Include:
Trailer & Chassis
FiberLite XL- Off-Road package - Includes extra heavy-duty aluminum frame with skid plate protection, special wide body 2500 lb. tandem torsion axles with electric brakes and a DOT breakaway system with 4” of lift in lieu of standard ride height. Insulated upper body. Black alloy wheels with LT 31X10.5 R15 all-terrain tires with matching spare tire and side carrier. Heavy-duty aluminum fenders in lieu of standard fiberglass fenders. Front and rear telescopic stabilizer jacks
3” Lunette eye hitch
7 pole RV spade type trailer plug
Pivoting sand pad foot
Fiberglass white gel coat body, insulated, with ribbed rubber floor mat
Nominal interior dimensions: 11’ L x 6’ W x 7’ H
(4) overhead storage cabinets with latching doors
(2) personnel entry doors, one at rear and one on curbside of trailer
(2) 3” x 8” cable slots, one each adjacent to each entry doors
Slider windows with screens on both sides
Step/bumper at rear and curbside entry door
Exterior access cabinet/wet closet, located on curb side of trailer
Streetside cabinets and countertop- (3) single-door cabinets, (1) four-drawer module and a 42” high full-length countertop
Curbside Cabinets and countertop - (1) two-door cabinet, (1) single-door cabinet, (1) dry erase board and a 42” high countertop from curbside door to rearwall, (1) exterior access cabinet/wet cabinet with interior storage drawer above

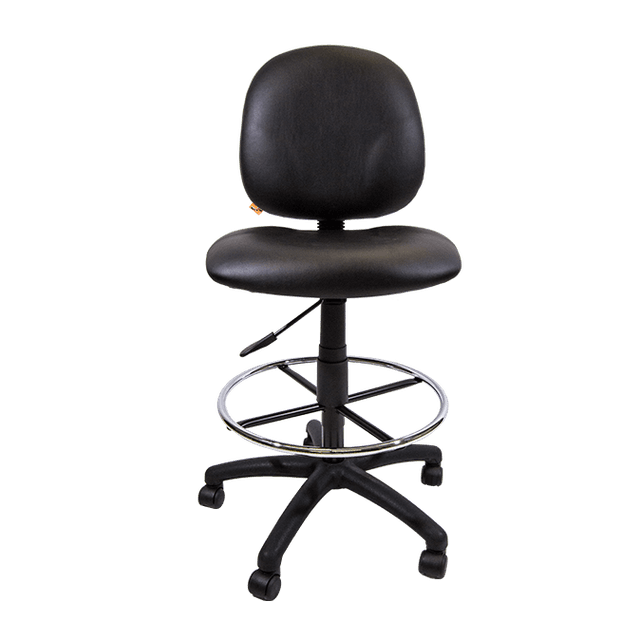

Task chair - adjustable height stool
CO (Carbon Monoxide) detector, 12 VDC, hardwired, audible alarm
Fire extinguisher, 2 lb., 5-B-C rating

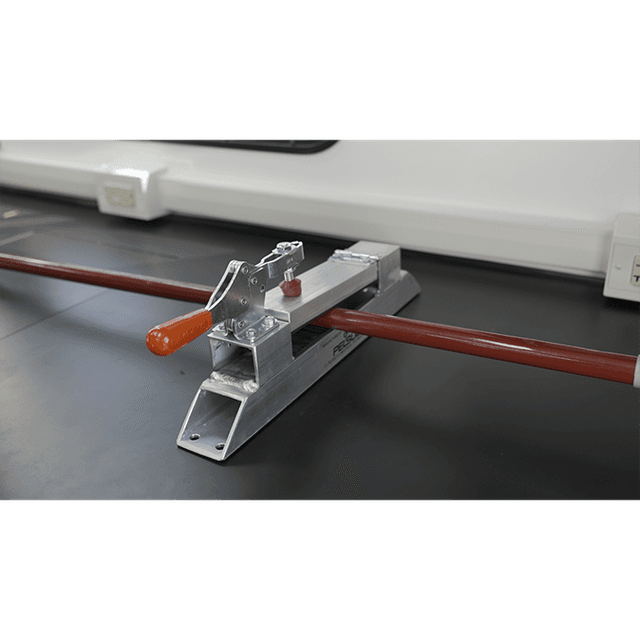

Cable clamp - steel, vacuum (suction cup) mount, 16” wide, shipped loose, Model 9S27
Rubber wheel chocks (1 pair) with holder, mounted over exterior fender, shipped loose
Electrical, Lighting & Climate
LED marker / clearance lights per DOT standards
LED stop / turn / tail lights per DOT standards
Control panel with individual circuit breakers
Commercial power inlet (120/240 VAC, 30-amp) twist lock: connects trailer to generator or commercial power, mounted on exterior front wall with cover
Onan CMM EFI 5500 genset, 5.5 KW,120 VAC/240 VAC, gasoline, includes 30-gallon CARB/EPAcompliant under-trailer fuel cell, remote-start mounted inside the trailer, includes 10 watt solar battery maintainer.
60 amp power converter
15,000 BTU Air Conditioner, low profile, roof-mounted
12 VDC LED lighting mounted under overhead cabinets
12 VDC LED lighting mounted on the ceiling
(5) GFCI duplex 120 VAC, 20-amp receptacles. Outlets are located on interior streetside and curbside walls with one receptacle that will also provide 2 USB ports located on front wall streetside
Exterior GFCI, 120 VAC duplex receptacle, 20-amp, located at rear exterior wall
(1) 12 VDC LED scene light, mounted on streetside of rear entry door, switch controlled
(1) 12 VDC LED scene light, mounted on curbside, switch controlled
Investing in Your Business? Invest in Fiberglass.
All Pelsue FiberLite® fiber splicing trailers come standard with fiberglass gel coat body, and perhaps nowhere is this more important than on the FiberLite® XL Grizzly that is built to take you where other trailers can’t. Fiberglass offers not only a sleek design, but also reliability, durability and a lifetime of value. If your trailer incurs any damage to the FiberLite body – odds that may increase over rugged terrain – it can be repaired far more quickly and easily than if it had an aluminum build. The lightweight fiberglass body also brings a lifetime of efficiency (and cost savings) through reduced fuel costs, heating/cooling efficiencies and more. Click here to read more about the advantages of fiberglass over aluminum for your fiber splicing trailer.
Your Partner in Bringing Quality Fiber Splicing Trailers to Your Business
Pelsue has been dedicated to enabling a safe and productive work environment for more than 50 years. When you purchase your FiberLite® fiber splicing trailer from Pelsue, you benefit from our decades-long commitment to making the best fiber splicing trailers available and backed by our dedicated parts and support staff. Learn more about us.
