FiberLite Pod Tradesman

FiberLite Pod Tradesman

SKU:

Choose Model:

FiberLite® Pod Tradesman™

Quantity:

1

Overview

High Quality Packed Into a Compact Frame

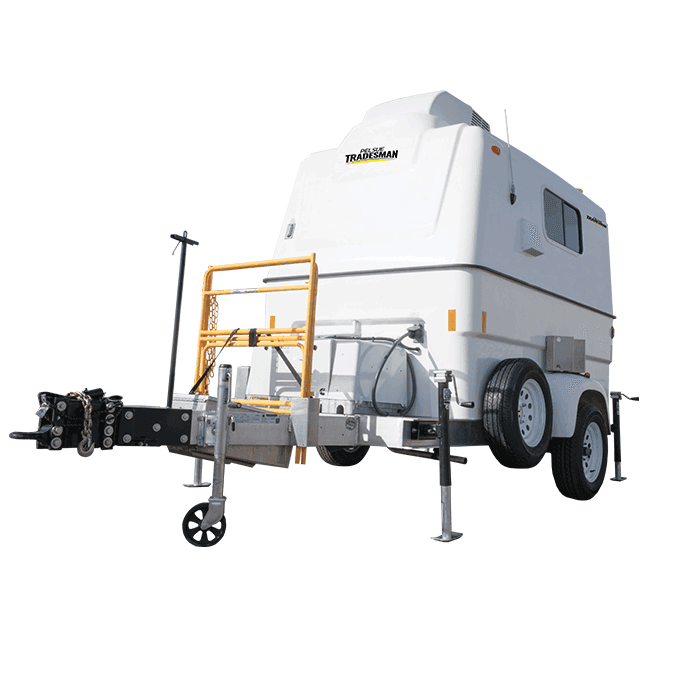

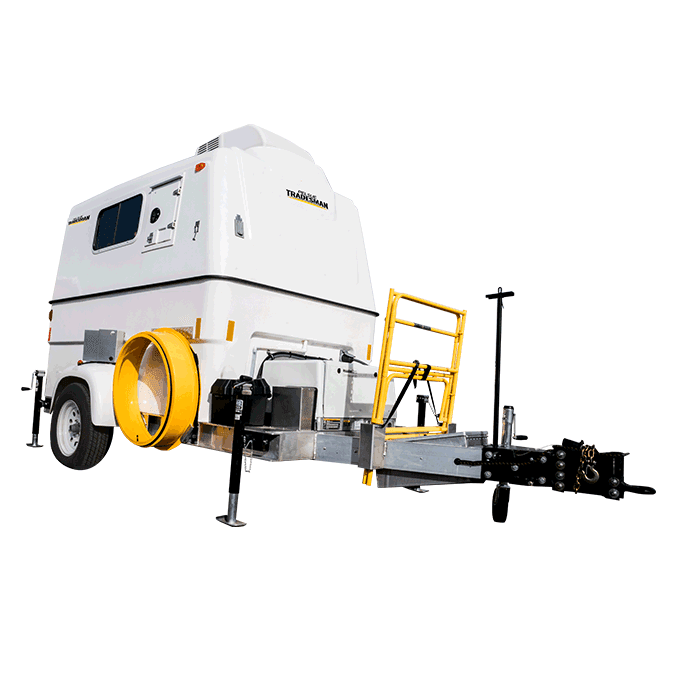

The FiberLite® Pod Tradesman™ is the most compact fiber optic splicing trailer on the market, packing a punch of comfortability, reliability and value within an agile, smaller frame.

Every Pelsue FiberLite® trailer includes aluminum frame construction, premium craftsmanship and the unmatched longevity of our fiberglass body.Featuring durable finishes and two slider windows, fresh air and natural light are abundant in this compact yet flexible workspace. An optional cable access door, located on the curb side of the trailer, allows flexibility to bring in splice cases if you can’t bring them through the rear door.

Compact Size That Packs a Punch

When your fiber splicing needs don’t require a ton of space, the Pelsue FiberLite® Pod Tradesman is the perfect fit. The Pod is compact and easy to maneuver, while offering the right amount of space – that can be easily outfitted to your exact specifications to get the job done.

Comfortable, Reliable, Safe and Clean

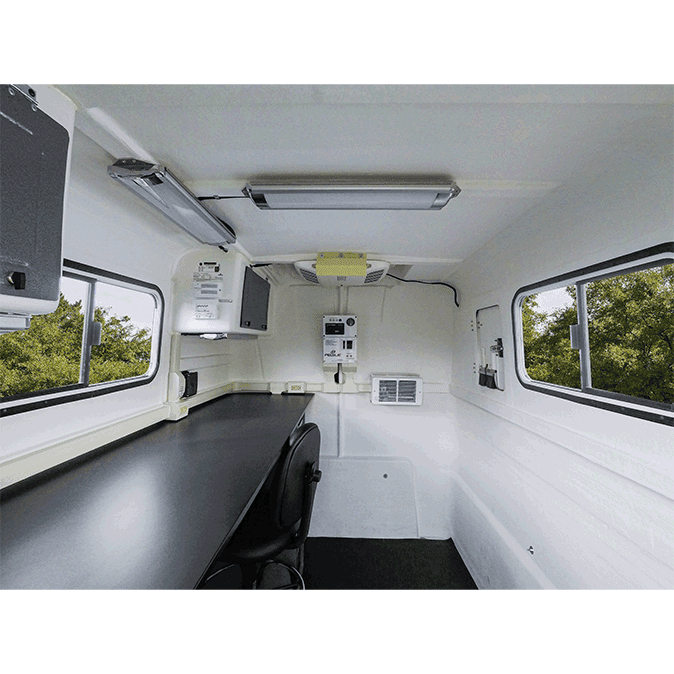

Two slider windows bring fresh air and natural light into the trailer, becoming the baseline of comfortability while ensuring a safe working environment. The compact yet agile interior cabinets and drawers also feature a silver hammertone powder coat for a clean and durable finish.

Standard Features Include:

Trailer & Chassis
  • All-aluminum modular frame construction with replaceable tongue

  • Single torsion axle, no brakes, with ST205/75-15 tires

  • 2” ball coupler

  • 7 pole RV spade type trailer plug

  • Pivoting solid caster wheel

  • Stabilizer jacks - two rear corner jacks

  • Fiberglass white gel coat body, with ribbed rubber floor mat

  • Insulated upper body, with locking curbside cable access door

  • Fiberglass white gel coat fenders

  • Overall interior height: 6’ 4”

  • 2 overhead storage cabinets with latching doors

  • Personnel entry door at rear of body

  • 3” x 8” cable slot adjacent to entry door

  • Slider windows with screens on both sides

  • Step/bumper at rear entry door

  • Task chair - adjustable height stool

  • CO (Carbon Monoxide) detector, 12 VDC, hardwired, audible alarm

  • Fire extinguisher, 2 lb., 5-B-C rating

  • Cable clamp - steel vacuum (suction cup) mount, 16” wide, shipped loose, Model 9S27

  • Rubber wheel chocks (1 pair) with holder, mounted over exterior fender, shipped loose

Electrical, Lighting & Climate
  • LED marker / clearance lights per DOT standards

  • LED stop / turn / tail lights per DOT standards

  • Control panel with individual circuit breakers

  • Commercial power inlet (120/240 VAC, 30-amp) twist lock: connects trailer to generator or commercial power, mounted on exterior front wall with cover

  • Onan CMM EFI 5500 genset, 5.5 KW,120 VAC/240 VAC, gasoline, includes 30-gallon CARB/EPAcompliant under-trailer fuel cell, remote-start mounted inside the trailer, includes 10 watt solar battery maintainer.

  • 60 amp power converter

  • Air conditioner, low profile, roof-mounted

  • 12 VDC LED lighting mounted under overhead cabinets

  • 12 VDC LED lighting mounted on the ceiling

  • (3) GFCI duplex 120 VAC, 20-amp receptacles. Two outlets are located on interior streetside wall and one receptacle that will also provide (2) USB ports located on front wall streetside

  • Exterior GFCI, 120 VAC duplex receptacle, 20-amp, located at rear exterior wall

  • (1) 12 VDC LED scene light, mounted on streetside of rear entry door, switch controlled

  • (1) 12 VDC LED scene light, mounted on curbside, switch controlled

  • (1) Single-door cabinet, (1) four-drawer module, and a 42” high full-length countertop on streetside

Why Fiberglass Matters

All Pelsue FiberLite® fiber splicing trailers come standard with a fiberglass gel coat body. Fiberglass offers several advantages like a sleek design, as well as reliability, durability and overall lifetime value. If your trailer incurs any damage to the high-quality FiberLite® body, it can be repaired far more quickly and easily than if it had an aluminum build in addition to the lightweight fiberglass body offering lifetime efficiency through reduced fuel costs, heating/cooling efficiencies and more. Click here to read more about the advantages of fiberglass over aluminum.

Our Commitment to You

Pelsue has been dedicated to enabling a safe and productive work environment for more than 50 years. When you purchase your FiberLite® fiber splicing trailer from Pelsue, you benefit from our decades-long commitment to making the best fiber splicing trailers available and backed by our dedicated parts and support staff. Learn more about us.
